Store > Brands > King Racing Shocks >

King Shock Parts - Bump Stop Pad

Additional Images

Select size and click "update price w/ options" button.
Sold Individually

Price: $27.00

Availability: Ships in 3-5 days

Part Number: KING-BSPAD

Select Bump Stop Pad Size

Sold Individually (One Single Pad).
Attachment screws NOT included.

I agree to no returns or exchanges. (Required)

Shipping Notice: Our website may over calculate shipping costs on larger/combined parts orders. If this happens, we will automatically reduce the shipping charges once the order is processed.

Unavailable Until 1/2/25

Description

**Read all instructions carefully before ordering bump stop pads.**
**No returns or exchanges on bump stop pads.**

Sold Individually - One Bump Stop Pad
Bump pad attachment screws NOT included.

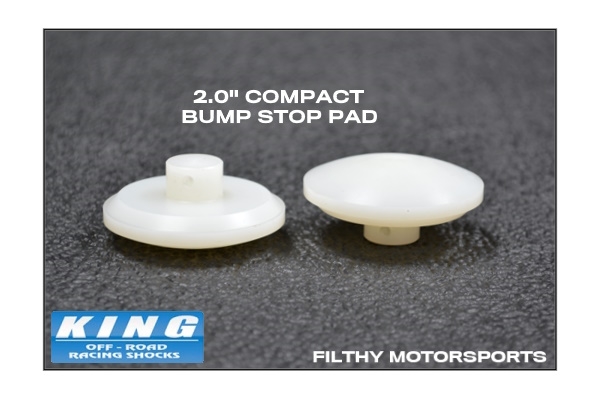

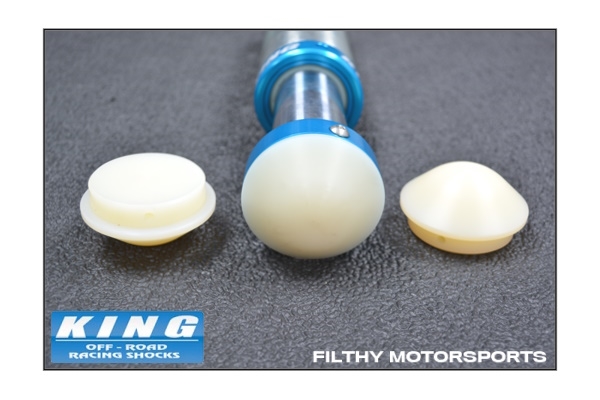

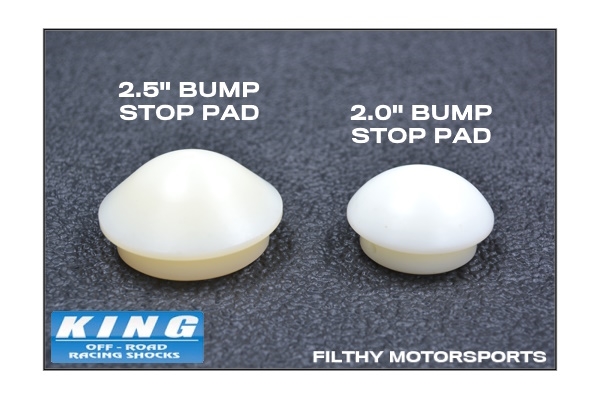

King Shock Bump Stop Pads are machined from heavy duty nylon and should be replaced when worn or damaged. Available for 2.0" and 2.5" standard bump stops and 2.0" compact bump stops. Sold individually.

To order bump stop pads find your bump stop model below and then order the matching bump stop pad by selecting it from the drop down menu above.

Bump P/N	Description	Bump Pad	Pad P/N

BS2020	2.0 x 2.0" Bump Stop	2.0" Standard Bump Pad	20AB412-001
BS2040	2.0 x 4.0" Bump Stop	2.0" Standard Bump Pad	20AB412-001
BS2043	2.0 x 4.0" / 3" Bump Stop	2.0" Standard Bump Pad	20AB412-001
BS2140	2.0 x 4" Shock Top Bump Stop	2.0" Standard Bump Pad	20AB412-001

BS2525	2.5 x 2.5" Bump Stop	2.5" Standard Bump Pad	25AB412-001
BS2540	2.5 x 4" Bump Stop	2.5" Standard Bump Pad	25AB412-001
BS2640	2.5 x 4" Shock Top Bump Stop	2.5" Standard Bump Pad	25AB412-001

BS120	2.0" Compact Bump Stop	2.0" Compact Bump Pad	20AB412-002
20001-150	2.0 Jeep JK/JL Bump Stop	2.0" Compact Bump Pad	20AB412-002
