King Air Shocks
King Air Shocks Images

Additional Images
Select kit options and click "update price w/ options" button.
Price: $356.25

Minimum order:  2


Availability: 6 weeks (if not in stock)

Part Number: KING-AIR

Shock Size



Shock Options









All custom options are special order (6-10 weeks).
Shock Valving:




Please provide some vehicle and use details for our review.

Payment Terms Agreement:

I agree to the payment terms. (Required)

Returns: A 20% restocking fee applies to any authorized returns. Custom and special order shocks are non-returnable and non-refundable.

Sales Tax: King Shocks are only taxable when shipping to CO and WA, however, expedited orders may be taxable to AZ, CA, CO, NV, TX, UT, and WA. If sales tax is not calculated correctly by our website, we will adjust it upon order review.

Note: Some option combinations may not be available at all times.


Qty:
Description

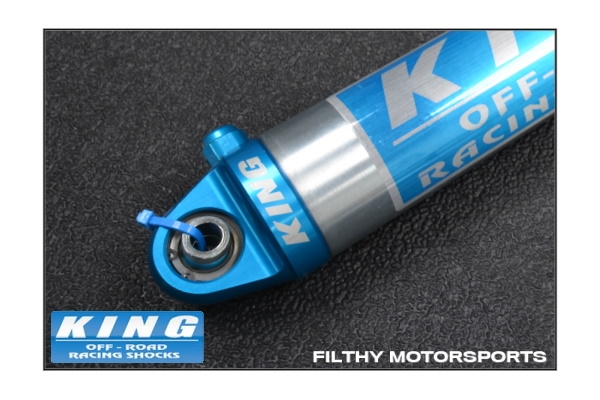

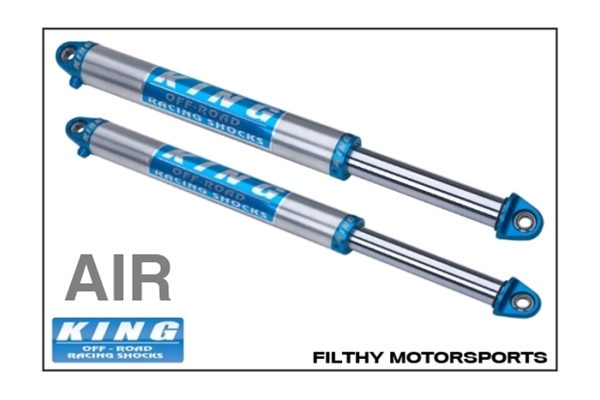

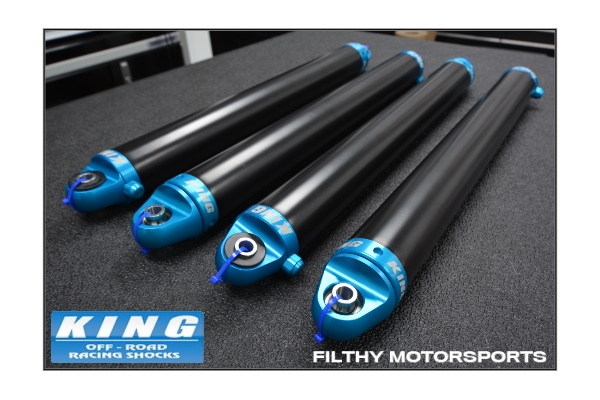

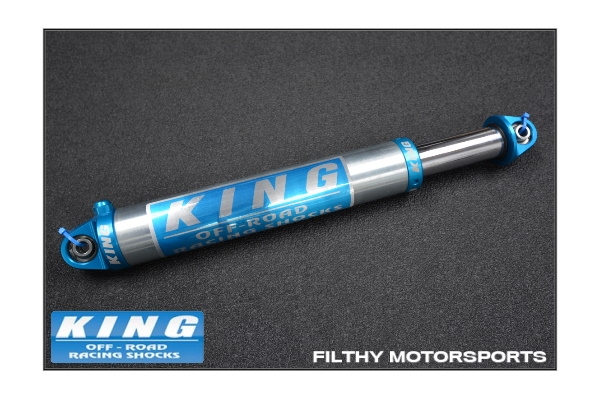

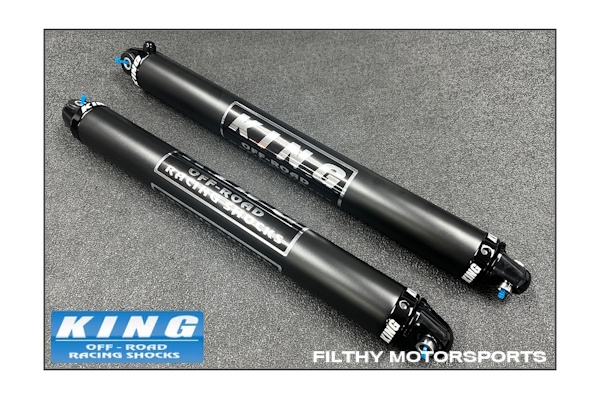

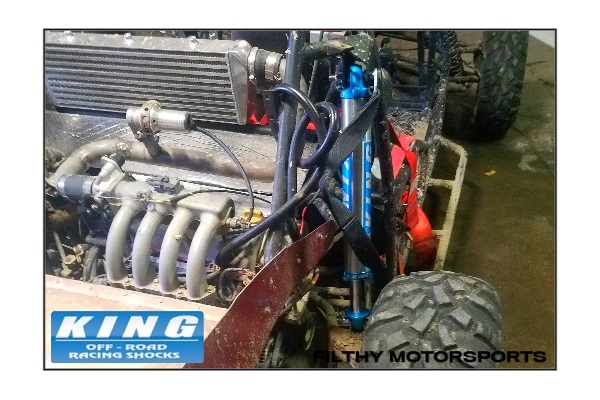

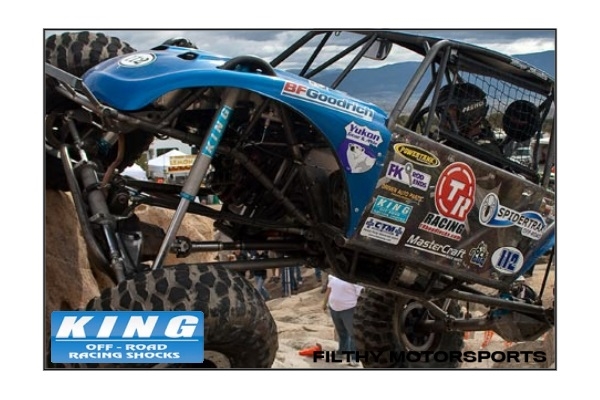

King Air Shocks (or also called Nitrogen Shocks) are the perfect alternative to coil over shocks for lightweight rock buggies and sand rails. Their simple yet reliable design incorporates both a shock absorber and a nitrogen spring in one shock body. Features include a gun-drilled (hollow) shaft to reduce overall weight and high pressure urethane seals to give the air shock a long life expectancy. Unlike coilovers, air shocks have an infinitely adjustable ride height that is controlled by changing the nitrogen pressure within the shock from 50 to 500 psi. The weight ratings for King Air Shocks at ride height are about 600-800 lbs. for the 2.0 model and 1,000 to 1,250 lbs. for the 2.5 model.


Air Shock Sizes:
The following table lists the sizes and dimensions of all available King air shocks:

King P/N Body Dia. Travel Shaft Dia. Compressed Extended

PR2006-ASNR 2.0" 6" 1.250" 13.000" 19.000"
PR2008-ASNR 2.0" 8" 1.250" 16.120" 24.120"
PR2010-ASNR 2.0" 10" 1.250" 18.120" 28.120"
PR2012-ASNR 2.0" 12" 1.250" 20.630" 32.630"
PR2014-ASNR 2.0" 14 1.250" 22.630" 36.630"
PR2016-ASNR 2.0" 16" 1.250" 24.630" 40.630"

PR2506-ASNR 2.5" 6" 1.625" 13.000" 19.000"
PR2508-ASNR 2.5" 8" 1.625" 16.120" 24.120"
PR2510-ASNR 2.5" 10" 1.625" 19.100" 29.100"
PR2512-ASNR 2.5" 12" 1.625" 21.100" 33.100"
PR2514-ASNR 2.5" 14" 1.625" 23.034" 37.034"
PR2516-ASNR 2.5" 16" 1.625" 25.784" 41.784"
PR2518-ASNR 2.5" 18" 1.625" 27.784" 45.784"

Compressed and extended shock lengths are measured from eye-to-eye.





[ King Shocks | Ordering | Shock Types | Combinations | Shock Options | Unboxing | Maintenance ]


Custom Built and Valved by King Racing
The air shocks you are looking at are not sitting on a warehouse shelf right now. That is because all shock orders are sent to King Racing as a build sheet for a specialized shock technician to custom build and valve by hand. This process only takes a few days and is a free service offered by Filthy Motorsports to its customers.

Selecting Shock Valving
Valving is the heart of all air shocks and it can make or break the overall performance of your vehicle. We take shock valving as seriously as King Racing does, and in order to decide on the correct valving for your shocks, we need to know as much as possible about your application. A "Shock Details" text box is part of the build menu above. Please use this text box to describe your application in as much detail as possible. Keep in mind that it is impossible to give us too much information, so don't hold back. After reviewing your description, if we still don't feel like we have enough information to consult with King Racing about your shocks, we will be sure to contact you for the additional information that we need. Our goal is to make sure your new air shocks are tuned perfectly.

Servicing, Tuning, and Rebuilding
King Air Shocks are built to handle all of the off-road abuse you can throw at them, and they only need a little service here and there to keep them going strong. For that reason, King designed their air shocks to be completely tunable, serviceable, and rebuildable using only simple hand tools. For added convenience, Filthy Motorsports stocks all of the replacement shock parts you need to do the work yourself, or you can bring (or ship) your shocks to us and we'll get them serviced for you.


Note: Air shocks ship uncharged.


Learn: How to Service and Rebuild King Shocks:
King Shock Rebuild Instructions & King Shock Replacement Parts
Features
  • 50 to 500 psi nitrogen ride height adjustments

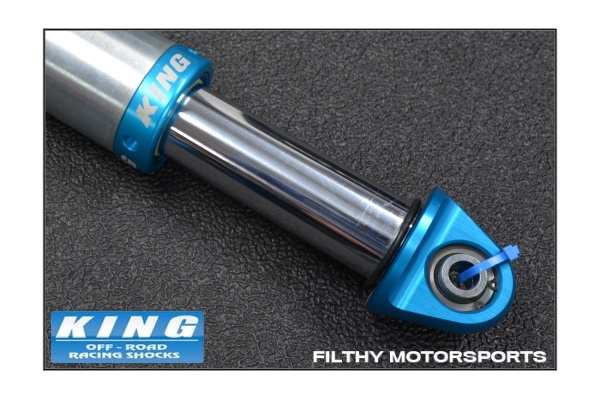

  • Heat treated, 1.250" or 1.650" gun drilled (hollow), hard chromed, micro polished shaft
  • Precision bored and honed, cadmium plated, chromoly body
  • Aircraft quality billet aluminum components
  • Heat treated 6061 aluminum alloy piston
  • Heat treated stainless alloy valve shims
  • Teflon bronze composite wear band
  • Heavy duty, long wearing, triple element seals
  • 1/2" or 5/8" Teflon lined spherical bearings
  • Billet end cap and Schrader valve cover
  • Fully rebuildable and serviceable
  • Made in the USA
